HOSTING
Model No.: DIANA 1
Brand: Fuji
Type: Driving System
Drive Mode: AC
Control Type: Microcomputer Frequency Control
Lift Mechanism: Telescoping Lift
Use of Occasions: Indoor Type
Guide Rail: T Guide
Rated Load: 320-1250 Kg
Rated Speed: 0.63-1.75 M/s
Ratio: 1:1, 2:1
Packaging: Non-wooden
Productivity: 80000/year
Transportation: Ocean
Place of Origin: Shanghai, China (Mainland)
Certificate: CE / ISO9001 / ISO14001
HS Code: 84253190
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: DIANA 1
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 1:1,2:1
Rated capacity: 320,400,450,630,800,1000,1250kg
Rated elevator speed: 0.63,1,1.6,1.75m/s
Max. lifting height: 60m
Max. shaft load: 3500kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V/DC100V
Number of motor poles: 20 poles
Traction sheave diameter: 330mm
Delivery Detail: 40 days after T/T in advance
Ø330 Permanent Magnet Synchronous Gearless Traction Machine, Diana 1, elevator gearless Traction Machine
Diana series permanent magnet synchronous gearless traction machine is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and has the advantages of low energy consumption, low noises, no pollution, and little maintenance.Diana series permanent magnet synchronous gearless traction machine is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and has the advantages of low energy consumption, low noises, no pollution, and little maintenance. Provided with wall-mounted supports, this kind of traction machine has its bearing structure consisting of four detachable drag links and have external rotor construction. The traction sheave is directly mounted on rotor yoke. Repulsion rectangular brake is fixed on upper drag link with rectangular cross-section, and it has unique design that makes it compact and light. Traction rope groove can be arranged in the middle or on one side. When the rope groove is arranged in the middle, double rope groove can be used so as to double the life of traction sheave. The traction machine can be installed on the top of the shaft way or at the bottom of the shaft way, and has handwinding function.

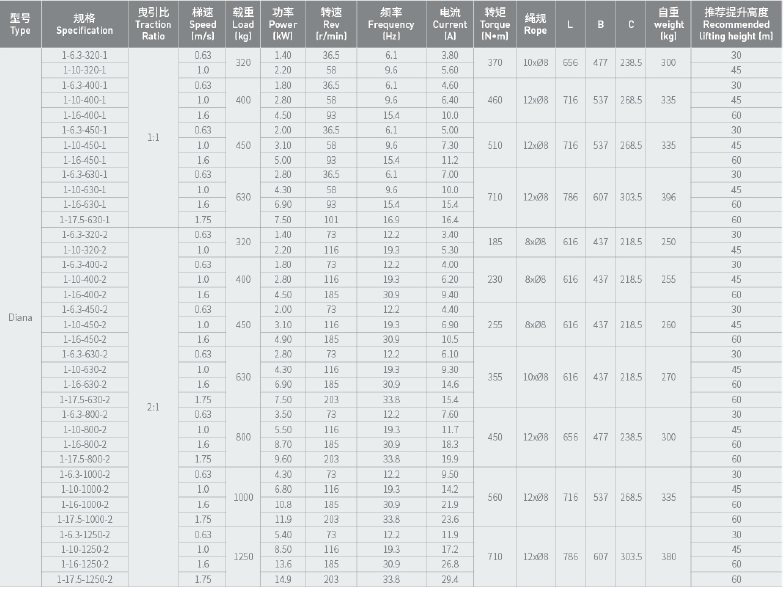

Traction ratio: 1:1,2:1
Rated capacity: 320,400,450,630,800,1000,1250kg
Rated elevator speed: 0.63,1,1.6,1.75m/s
Max. lifting height: 60m
Max. shaft load: 3500kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V/DC100V
Number of motor poles: 20 poles
Traction sheave diameter: Ø 330mm
Name:Diana 1 (320~1250kg)
Product Categories : Gearless Traction Machine
