Elevator Gearless Traction Machine 3000kg Shaft Load

Elevator Traction Machine 3000kg Shaft Load , up to 2m/s, WWTY5

Product Description

This series of permanent-magnet synchronous gearless traction machines is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and thus has the advantages of low energy consumption, low noises, no pollution, and little maintenance.

These traction machines can be arranged for providing upward traction or downward traction, and have remote manual brake release function.

This series of permanent-magnet synchronous gearless traction machines adapts single wrap, and roping factor is 2:1.

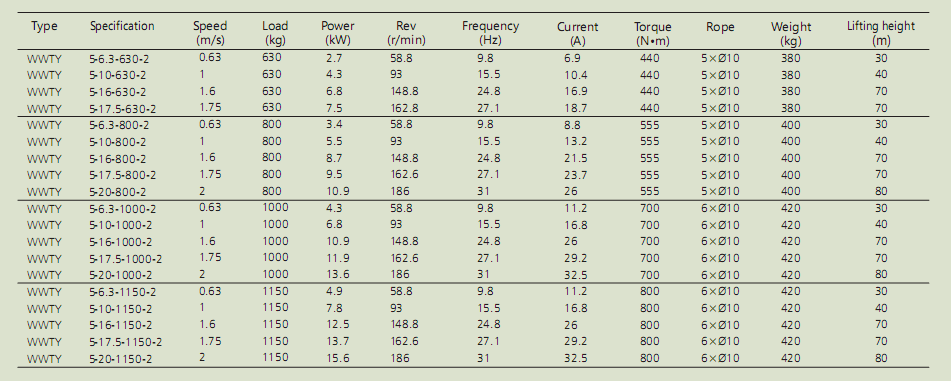

Product Characteristics

Traction ratio: 2:1

Rated capacity: 630,800,1000,1150kg

Rated elevator speed: 0.63,1,1.6,1.75,2m/s

Max. shaft load: 3000kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for brake opening, and DC100V for brake holding
