Elevator Gearless Traction Machine - WTYF380

Permanent Magnet Gearless Traction Machine High Speed and Heavy Load WTYF380

Product Description

This series of permanent-magnet synchronous gearless traction machines has large capacity and dual supporting structures, with traction sheave located between two bearings, so force application is more reasonable.

Drum brakes are applied for the traction machines, which have high braking torque, high reliability and easy maintenance and commissioning.

Unique internal rotor construction and excellent magnetic field design, enable the product to have excellent performance, low noise level and high-speed steady operation.

Imported bearings are applied, which have high bearing capacity and long life. The Encoder is installed in various manners to meet different customer demands. This series of traction machines is applicable for the elevator with machine room.

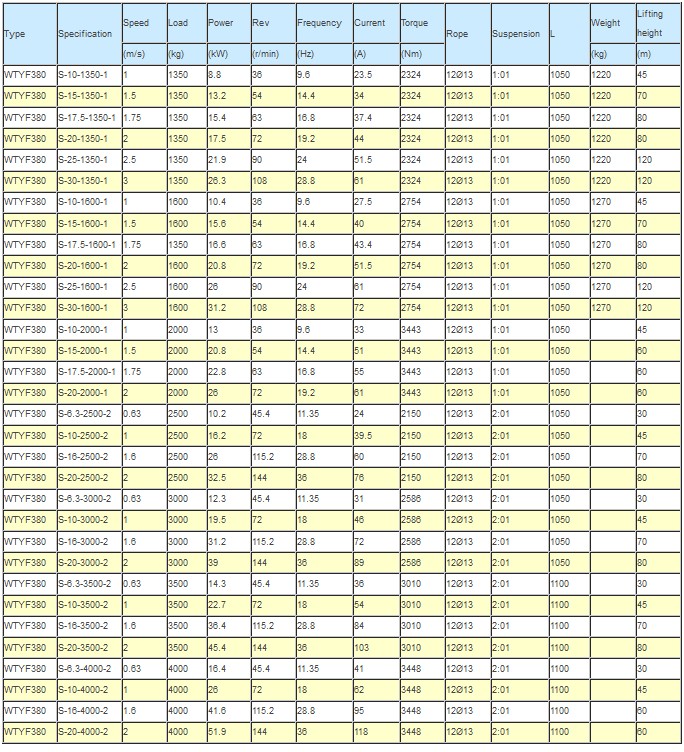

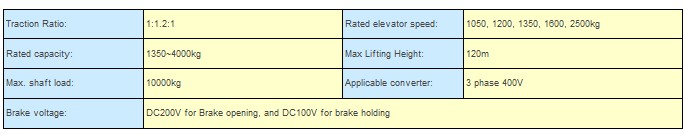

Product Characteristics

Traction ratio: 1:1,2:1

Rated capacity: 1350~4000kg

Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s

Max. lifting height: 120m

Max. shaft load: 10000kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for Brake opening, and DC100V for brake holding
