Model No.: WTYF380
Brand: Fuji
Type: Driving System
Load Capacity: 4000kg
Persons: >20
Speed: 2.00-3.50m/s
Drive Mode: AC
Control Type: Microcomputer Frequency Control
Lift Mechanism: Telescoping Lift
Use of Occasions: Indoor Type
Guide Rail: T Guide
Packaging: non-wooden
Productivity: 80000/year
Transportation: Ocean
Place of Origin: CHINA
Certificate: CE / ISO9001 / ISO14001
HS Code: 84253190
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

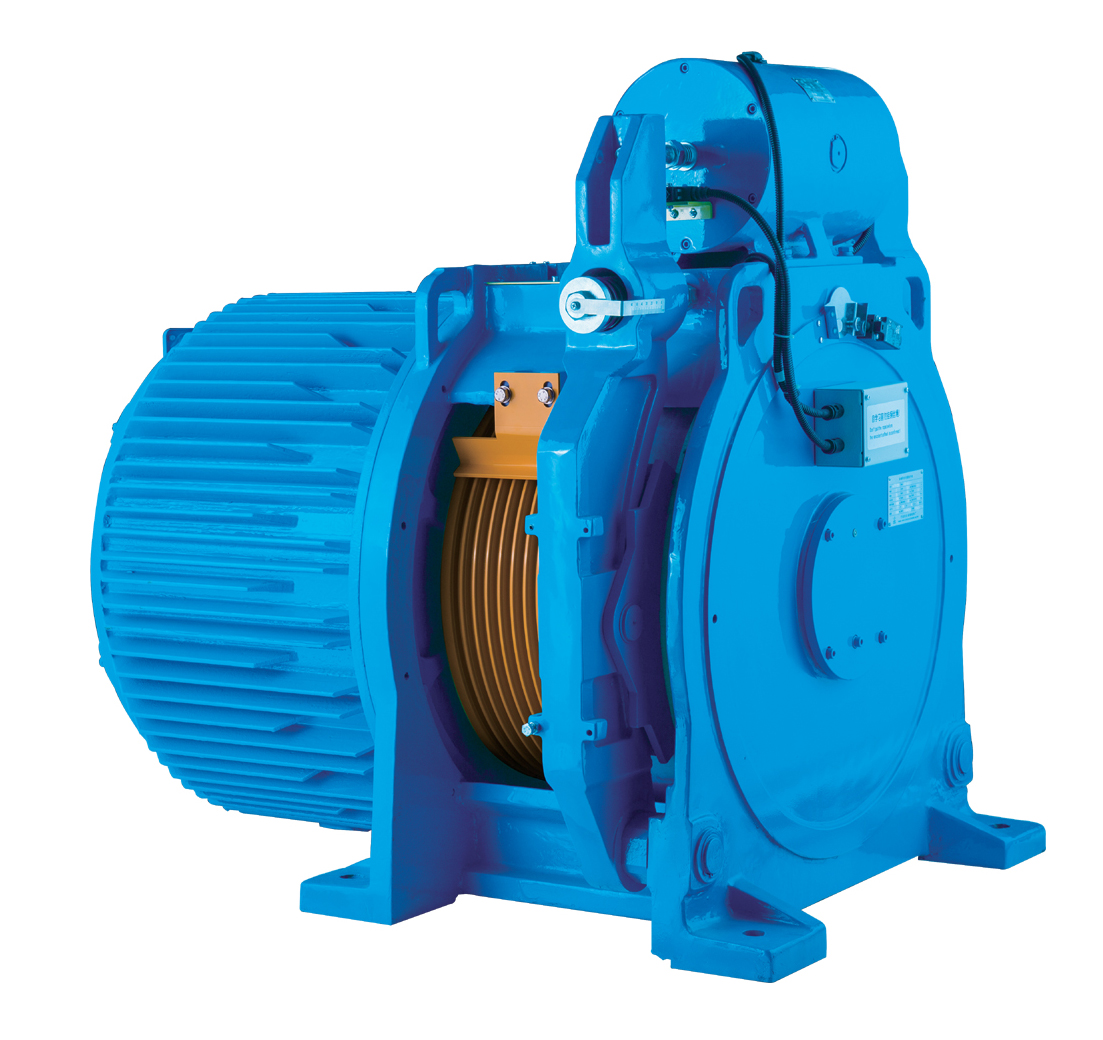

Permanent Magnet / Elevator Traction Machine 4000kg 3.0m/s , WTYF380
Product Description
This series of permanent-magnet synchronous gearless traction machines has large capacity and dual supporting structures, with traction sheave located between two bearings, so force application is more reasonable.
Drum brakes are applied for the traction machines, which have high braking torque, high reliability and easy maintenance and commissioning.
Unique internal rotor construction and excellent magnetic field design, enable the product to have excellent performance, low noise level and high-speed steady operation.
Imported bearings are applied, which have high bearing capacity and long life. The Encoder is installed in various manners to meet different customer demands. This series of traction machines is applicable for the elevator with machine room.

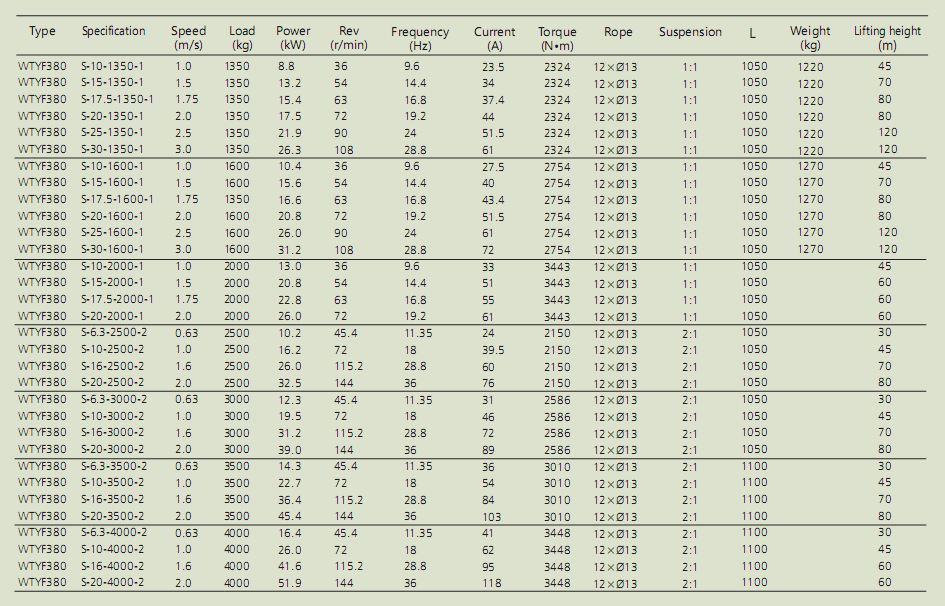

Product Characteristics
Traction ratio: 1:1,2:1
Rated capacity: 1350~4000kg
Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s
Max. lifting height: 120m
Max. shaft load: 10000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Product Categories : Elevator Traction Motor
