Gearless Double Wrap Elevator Traction Machine ,Traction Ratio 1:1 2:1 WTYF328

1. Traction ratio: 1:1,2:1
2. Rated capacity: 1050,1200,1350,1600, 2000kg
3. Rated elevator speed: 3,3.5,4m/s
4. Max. lifting height: 200m
5. Max. shaft load: 15000kg
6. Applicable converter: 3 phase 400V

Double Wrap Elevator Traction Machine ,Traction Ratio 1:1 , 2:1 WTYF328

Product Description

This series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity, high efficiency and good stability.

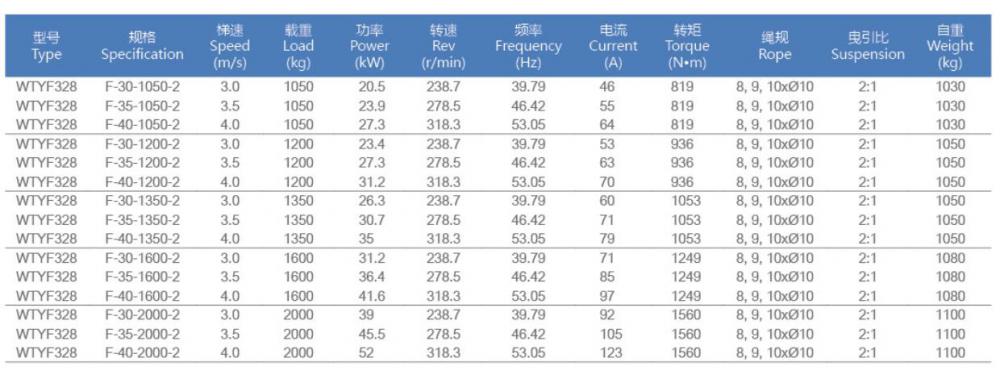

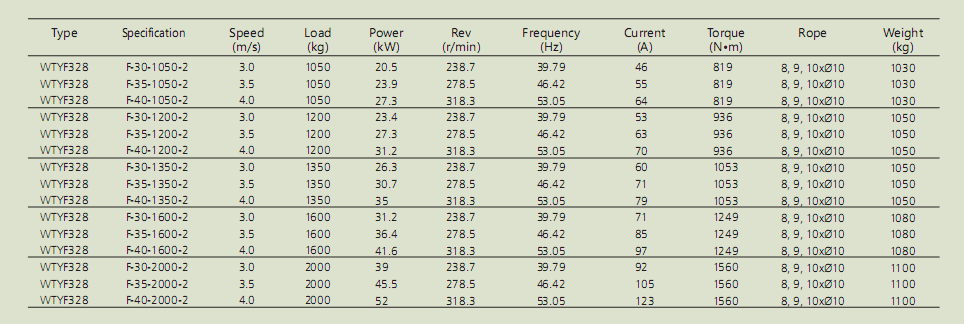

Product Characteristics

Traction ratio: 1:1,2:1

Rated capacity: 1050,1200,1350,1600, 2000kg

Rated elevator speed: 3,3.5,4m/s

Max. lifting height: 200m

Max. shaft load: 15000kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for Brake opening, and DC100V for brake holding

Number of motor poles: 20 poles
