Gearless Traction Machine for Elevator Mini9 520 Series

Fuji Gearless Lift Traction Machines MINI 9

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 9
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 1:1,2:1
Rated capacity: 1600,3500 kg
Rated elevator speed: 1,1.5,1.75,2,2.5,3 m/s
Max. lifting height: 120m
Max. shaft load: 10000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v

Poles: 30 Poles
Traction sheave diameter: 520mm

Packaging & Delivery

Delivery Detail: 30 days after T/T in advance


Ø520 Permanent Magnet Synchronous Gearless Traction Machine, MINI 9, elevator gearless Traction Machine

Product Description

This series of Gearless Machine adopts an outer rotor structure and a unique fixed center axis design, making the stress of the host machine more reasonable.

The excellent magnetic field design allows the host to run smoothly with low noise and low temperature rise.

Product Characteristics

Traction ratio: 1:1,2:1
Rated capacity: 1600,3500 kg
Rated elevator speed: 1,1.5,1.75,2,2.5,3 m/s
Max. lifting height: 120m
Max. shaft load: 10000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Traction sheave diameter: Ø 520mm

Name:MINI 9 (1600,3500kg)

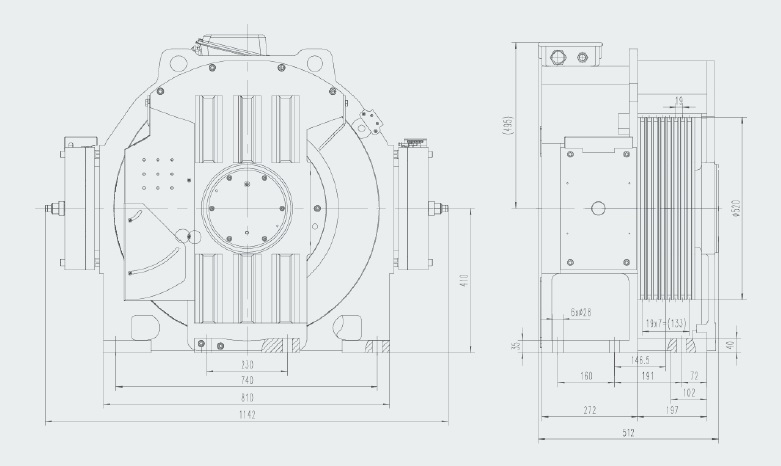

Overall & Installation Dimensions:

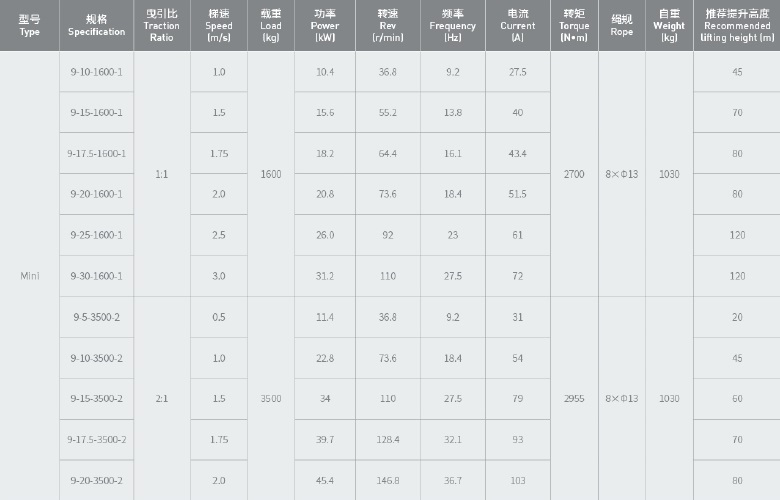

Specifications:
