Gearless Traction Machine for Elevator Mini6 325 Series

Fuji Gearless Lift Traction Machines MINI 6

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 6
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 2:1
Rated capacity: 320,400,500,630,800 kg
Rated elevator speed: 0.63,1,1.6,1.75 m/s
Max. lifting height: 60m
Max. shaft load: 2200kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v
Number of motor poles: 20 poles
Traction sheave diameter: 325mm

Packaging & Delivery

Delivery Detail: 30 days after T/T in advance


Ø325 Permanent Magnet Synchronous Gearless Traction Machine, MINI 6, elevator gearless Traction Machine

Product Description

Light and small, the traction machine can be mounted on the top, at the bottom or in the wall, can be used in machine-room and machine-roomless applications, and is provided with brake release and handwinding devices.

Mini series gearless traction machines are applicable to both machine room and machine-roomless applications. This type of traction machine has low vibration and low noise level, and can match well with various frequency converters.

This type of traction machine can be used in home elevators and villa elevators.

Product Characteristics

Traction ratio: 2:1
Rated capacity: 320,400,500,630,800 kg
Rated elevator speed: 0.63,1,1.6,1.75 m/s
Max. lifting height: 60m
Max. shaft load: 2200kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 20 poles
Traction sheave diameter: Ø 325mm

Name:MINI 6 (320~800kg)

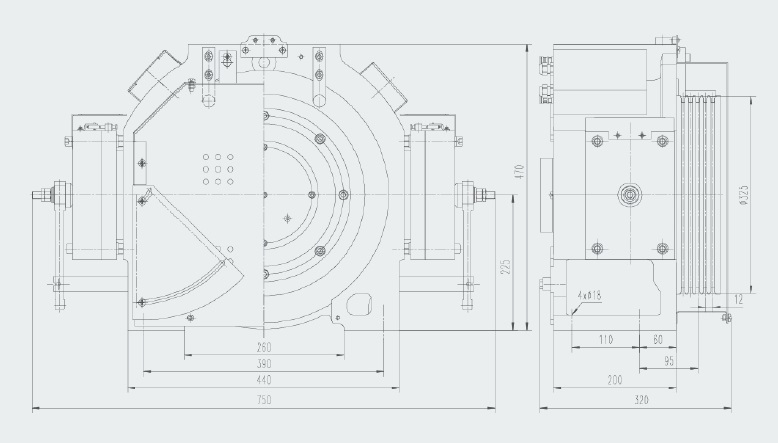

Overall & Installation Dimensions:

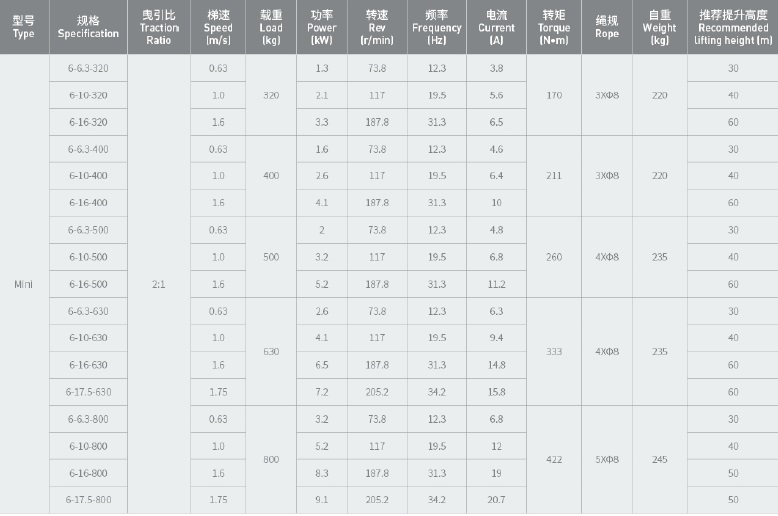

Specifications:
