Gearless Traction Machine for Elevator Mini4 480 Series

Fuji Gearless Lift Traction Machines MINI 4

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 4
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 2:1
Rated capacity: 800,1000 kg
Rated elevator speed: 0.63,1,1.6,1.75,2.0,2.5 m/s
Max. lifting height: 90m
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v
Number of motor poles: 20 poles
Traction sheave diameter: 480mm

Packaging & Delivery

Delivery Detail: 30 days after T/T in advance


Ø480 Permanent Magnet Synchronous Gearless Traction Machine, MINI 4, elevator gearless Traction Machine

Product Description

This series of gearless traction machines has unique external rotor construction so that the forces are applied to the machine reasonably. Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise. It is provided with block brake, which has high braking torque and low closing noises.

Traction sheave is available in two pitch diameters 410mm and 480mm, and the Encoder can be installed in various manners to meet different demands of customers. The product is provided with manual brake release device and remote brake release device, and can be used in small machine room elevators and non-machine room elevators.

Product Characteristics

Traction ratio: 2:1
Rated capacity: 800,1000 kg
Rated elevator speed: 6.3,1,1.6,1.75,2,2.5 m/s
Max. lifting height: 90m
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 20 poles
Traction sheave diameter: Ø 480mm

Name:MINI 4 (800~1000kg)

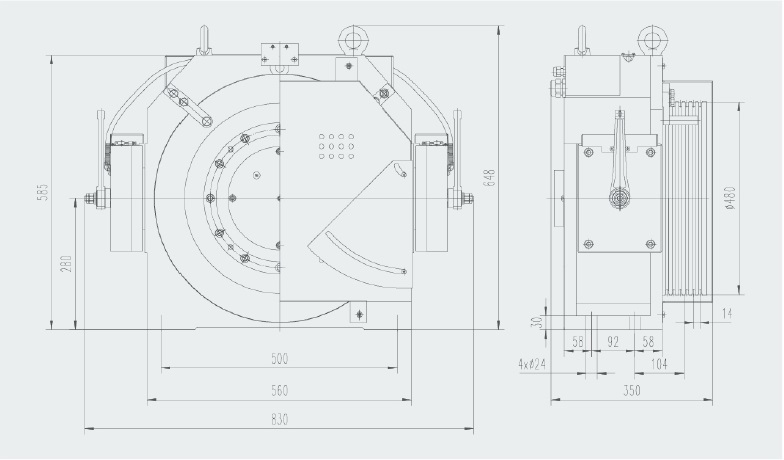

Overall & Installation Dimensions:

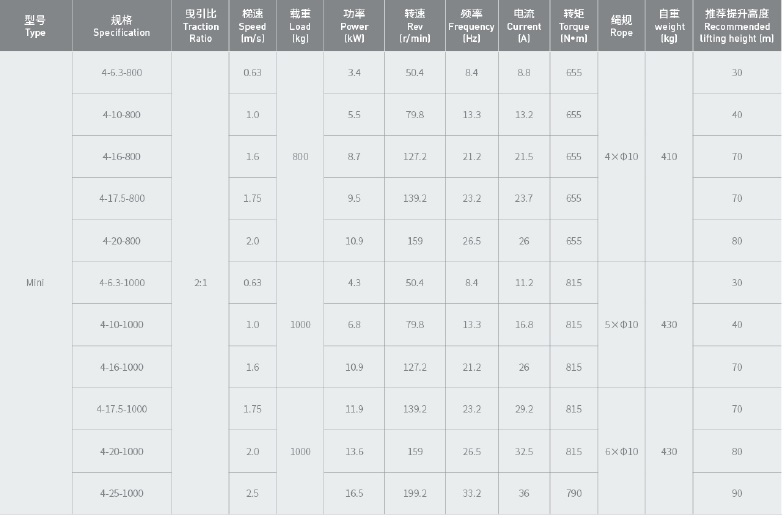

Specifications:
