Gearless Traction Machine Mini2 500 Series

Fuji Gearless Lift Traction Machines MINI 2

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 2
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 1:1,2:1
Rated capacity: 800,1000,1250,1350,1600,2000,2500 kg
Rated elevator speed: 1,1.6,1.75,2.0 m/s
Max. lifting height: 120m
Max. shaft load: 6000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v
Number of motor poles: 30 poles
Traction sheave diameter: 500mm

Packaging & Delivery

Delivery Detail: 40 days after T/T in advance


Ø500 Permanent Magnet Synchronous Gearless Traction Machine, MINI 2, elevator gearless Traction Machine

Product Description

MINI2 is a medium and high speed heavy load traction machine, suitable for machine room elevators for high building. It has the advantages of low energy consumption, low noises, no pollution, and little maintenance.

Product Characteristics

Traction ratio: 1:1,2:1
Rated capacity: 800,1000,1250,1350,1600,2000,2500 kg
Rated elevator speed: 1,1.6,1.75,2m/s
Max. lifting height: 120m
Max. shaft load: 6000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 30 poles
Traction sheave diameter: Ø 500mm

Name:MINI 2 (800~2500kg)

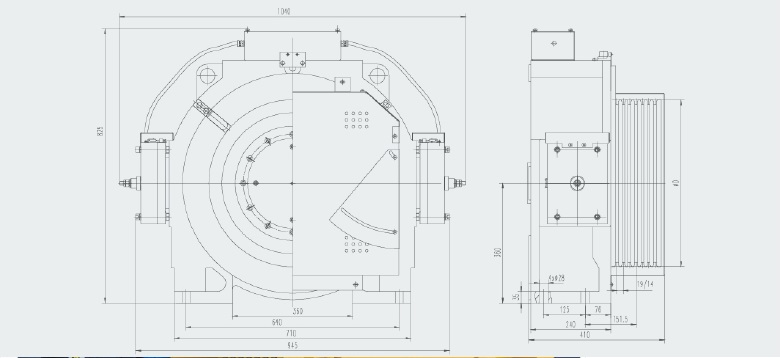

Overall & Installation Dimensions:

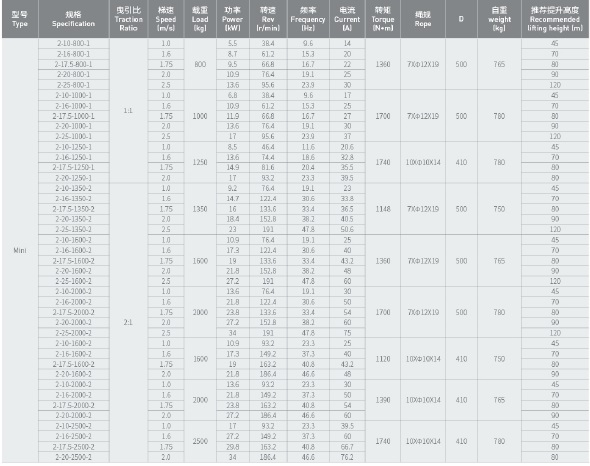

Specifications:
