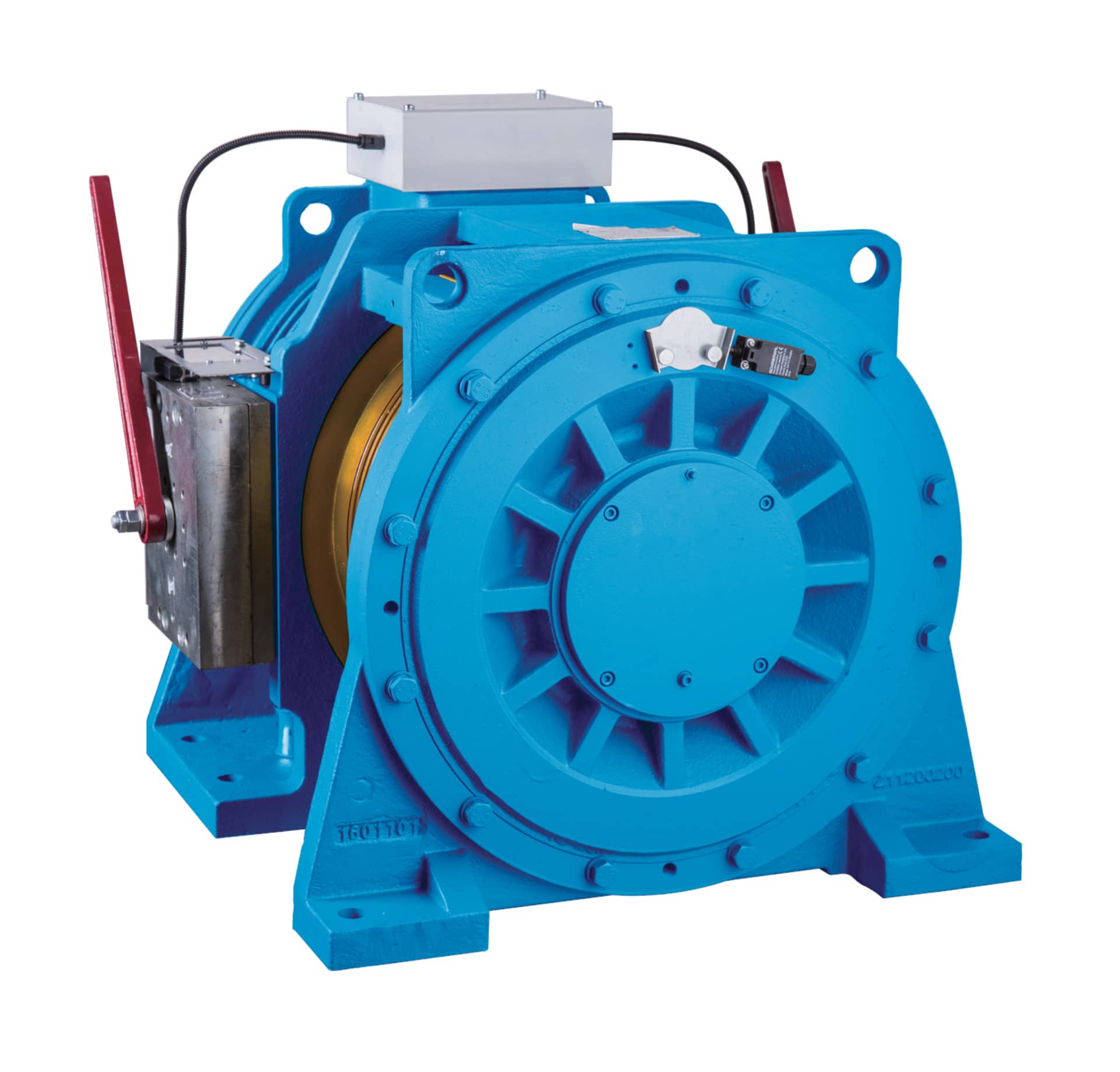

Gearless Traction Machine-WTYF328(High Speed)

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: WTYF328
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 1:1,2:1
Rated capacity: 1050,1200,1350,1600, 2000kg
Rated elevator speed: 3,3.5,4m/s
Max. lifting height: 200m
Max. shaft load: 15000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Number of motor poles: 20 poles

Packaging & Delivery
Delivery Detail: 60 days after T/T in advance


Double Wrap Gearless Traction Machine,Traction Ratio 1:1 , 2:1 WTYF328



Product Description



This series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity, high efficiency and good stability.

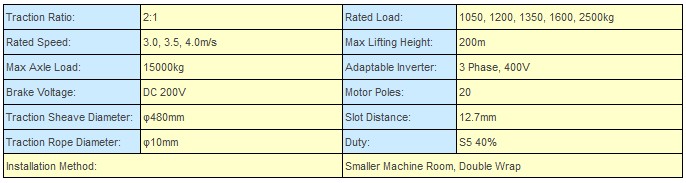

Product Characteristics



Traction ratio: 1:1,2:1

Rated capacity: 1050,1200,1350,1600, 2000kg

Rated elevator speed: 3,3.5,4m/s

Max. lifting height: 200m

Max. shaft load: 15000kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for Brake opening, and DC100V for brake holding

Number of motor poles: 20 poles

Name:WTYF328 (High Speed)

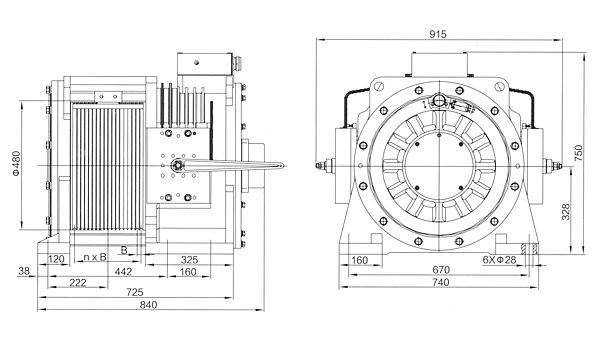

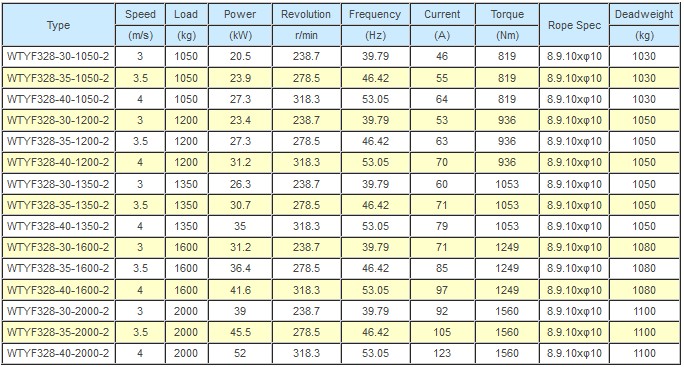

Specifications:
