Light and Small Gearless Traction Machine

Quick Details

Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 6
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 2:1
Rated capacity: 320~800kg
Rated elevator speed: 0.63,1,1.6, 1.75m/s
Max. lifting height: 60m
Max. shaft load: 2200kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Number of motor poles: 20 poles
Traction sheave diameter: 325mm

Packaging & Delivery
Delivery Detail: 60 days after T/T in advance


20 Poles Gearless Traction Machine For Elevators / Lifts , Low Vibration and Low Noise , MINI



Product Description



Light and small, the Traction Machine can be mounted on the top, at the bottom or in the wall, can be used in machine-room and machine-roomless applications, and is provided with brake release and handwinding devices.

Mini series gearless traction machines are applicable to both machine room and machine-roomless applications. This type of traction machine has low vibration and low noise level, and can match well with various frequency converters.

This type of traction machine can be used in home elevators and villa elevators.





Product Characteristics



Traction ratio: 2:1

Rated capacity: 320~800kg

Rated elevator speed: 0.63,1,1.6,1.75m/s

Max. lifting height: 60m

Max. shaft load: 2200kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for Brake opening, and DC100V for brake holding

Number of motor poles: 20 poles

Traction sheave diameter: Ø 325mm

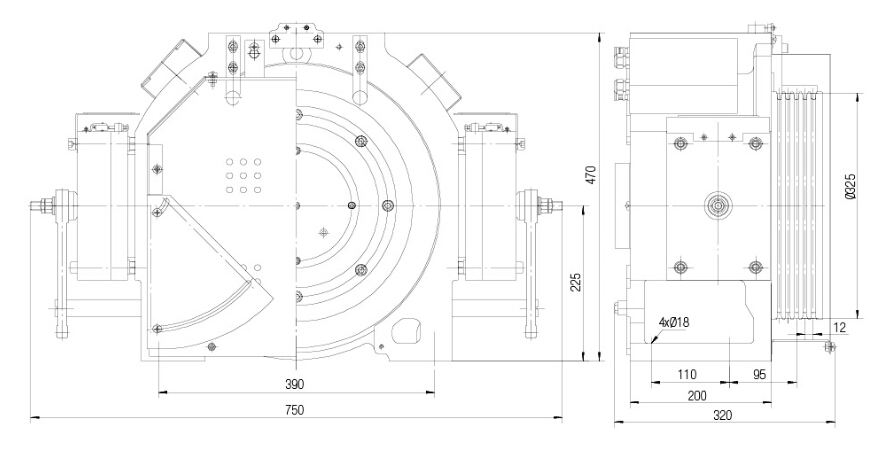

Name:MINI (320~800kg)

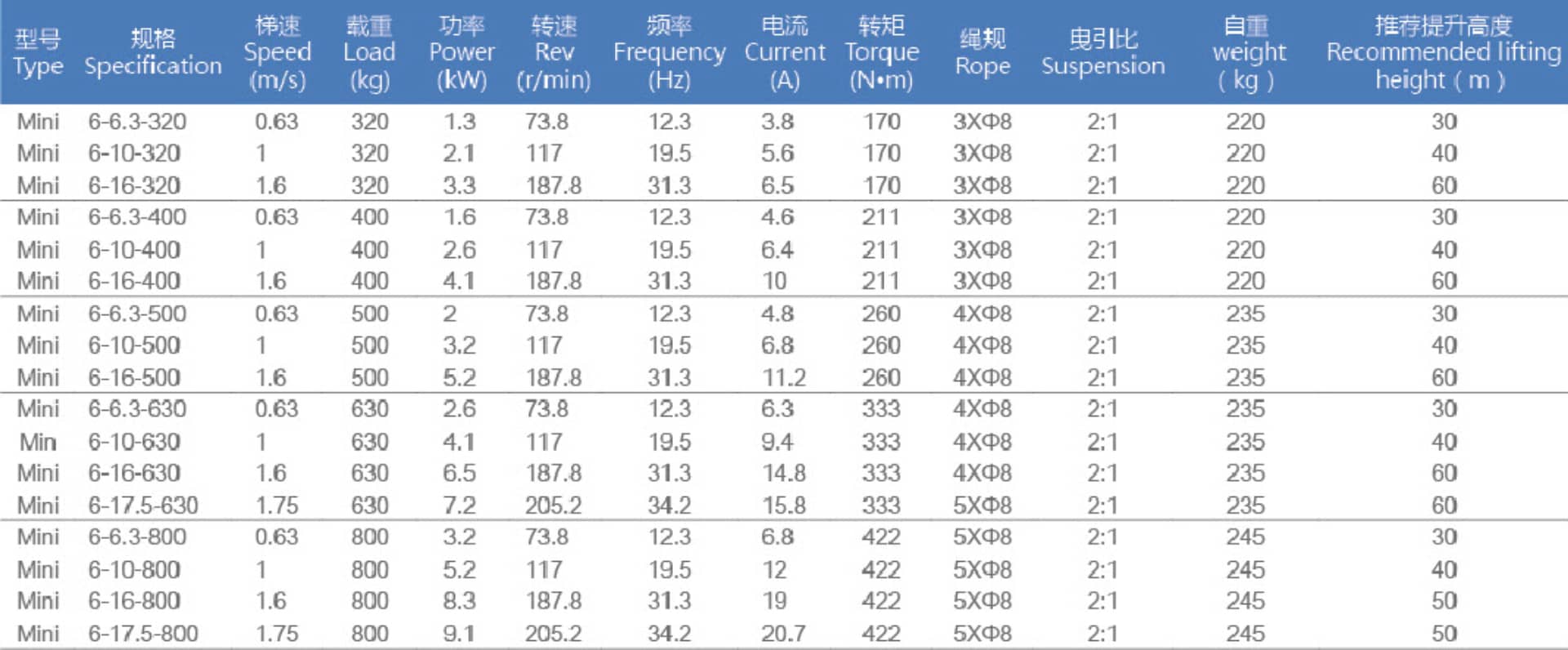

Specifications:
