Overview

Product Attributes

Model No.: SB-JRF

Brand: Fuji

Supply Ability & Additional Information

Packaging: non-wooden

Transportation: Ocean

Place of Origin: China

Certificate: CE / ISO9001 / ISO14001

Payment Type: T/T,L/C

Packaging & Delivery

Package Type:: non-wooden

1.Motor for door machine of elevator / lift
2.Protective class : IP21
3.Insulation class : F

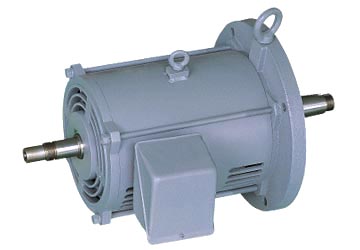

Three Phase Asynchronous IP21 SB-JRF Series Motors For Elevator / Lift
Name: SB-JRF Series Motors

SB-JRF series three-phase asynchronous motors have steel casing and frequency conversion motors. They feature attractive appearance and compact structure. The installation forms are IM9109 and IM3609.

Main Technical Parameters

Model	Power (kW)	Voltage (V)	Current (A)	Rotate Speed (r/min)	Frequency (Hz)	Installation Model	Protective Class	Insulation Class	Working System	Noise (Sound Pressure Level)
SB-JRF132-4	7.5	340	18.5	1770	60	IM3019	IP21	F	S2/0.5h	60
SB-JRF160-4	11	300	29.6	1460	50	IM9019	IP21	F	S2/0.5h	58
SB-JRF200-4	37	300	102	925	32	IM3019	IP21	F	S2/0.5h	68

Product Categories : Elevator Component
