Permanent Magnet DC Door Motors , Elevator Component

1.Motor for door machine of elevator / lift
2.Insulation class : B

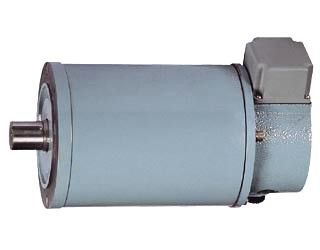

ZYM100-140 Permanent Magnet DC Door Motors , Elevator Component
Name: ZYM100-140 Permanent-magnet DC Door Motors


ZYM100-140 permanent-magnet DC door motors are upgraded from the former separate excitation DC door motors with high-performance permanent-magnet Nd-Fe-B as the excitation unit. They feature low speed and big torque, direct drive without reduction gear, low temperature rise, high efficiency, low noise, compactness and lightness etc.

Main Technical Parameters

Rated Power	Rated Rotate Speed	Rated Voltage	Efficiency	Starting Torque
100W	140r/min	110V	70%	≥3.2N.m

Noise	Insulation Class	Working System	Installation Mode	Cooling Mode
≤60dB(A)	B	S1	IMB5	IC00
