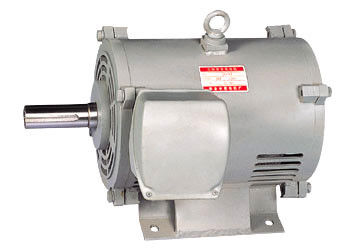

Elevator Component , Small Vibration SB-JR Series Motors

1.Motor for door machine of elevator / lift
2.Protective class : IP22
3.Insulation class : B

Small Vibration SB-JR Series Motors , Elevator Component
Name:SB-JR Series Motors


As the drive motors of Escalators, SB-JR series motors have the advantages of attractive appearance, compact structure, low noise and small vibration. The installation form is IM1001.

Main Technical Parameters

Model	Power (kW)	Voltage (V)	Current (A)	Frequency	Rotate Speed (r/min)	Protective Class	Insulation Class	Working System	Noise (Sound Pressure Level)
SB-JR160M-4	9	380	18.5	50	1460	IP22	B	S1	58
SB-JR160L-4	15	380	29.4	50	1460	IP22	B	S1	58
