SFT-824&834 Light Curtain for elevator spare parts safety parts

Quick Details

Type: Elevator Parts
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: SFT-820&832
Detecting range: 0~4m
Qty of infra red diodes 824: 17diode
Beams of 824: 33~96
Qty of infra red diodes 834: 32diode
Beams of 834: 94~154
Voice Remainder: 15s after continuous detection
Protection level: IP54

Packaging & Delivery
Delivery Detail: 20 days after 100% T/T in advance

Product Description

SFT-824&834 series Light Curtain for Elevator Spare Parts safety parts

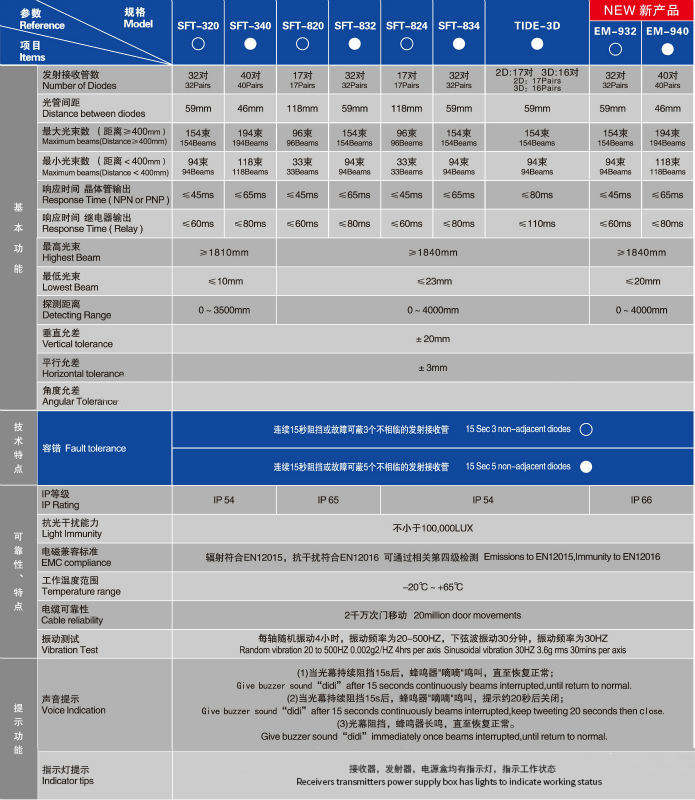

Techinical details:

Detecting range: 0~4m

Qty of infra red diodes 824: 17diode

Beams of 824: 33~96

Qty of infra red diodes 834: 32diode

Beams of 834: 94~154

Voice Remainder: 15s after continuous detection

Protection level: IP54



Product characters:

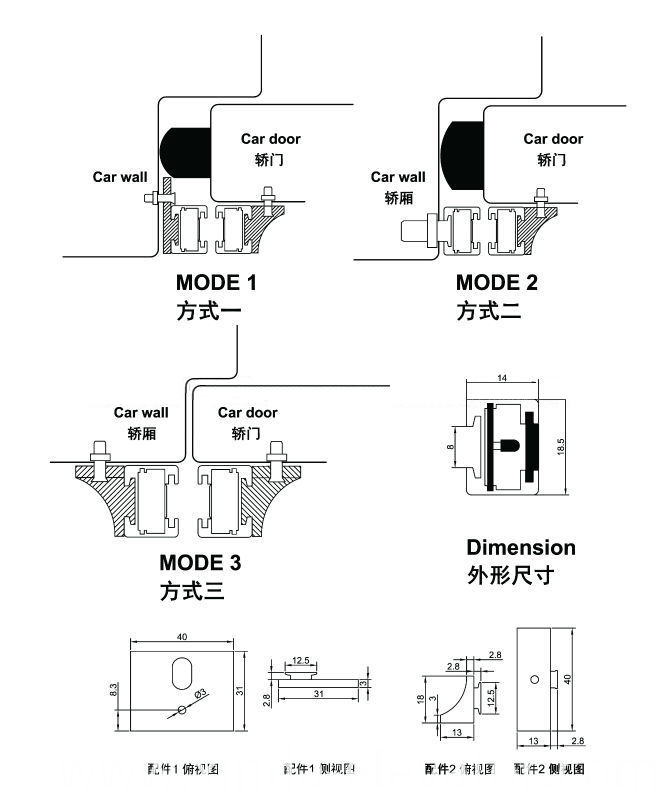

Three kinds of installation methods are available for the same model which are suitable for all side opening Elevators.

Fault tolerance function, automatically shield the faulty diodes and remind the users;

Dormancy function, prolong product`s working life;

Adopt new technology. PCBA with strong ability of corrosion resistance, and strong ability of field adaption, stable and reliable;

Beautiful appearance design, easy installation, suitable for most brand elevators;

Advanced technics and equipments, reliable SMT surface padding techniques;

Optional for users to choose NPN&PNP output (Transistor output) without power supply box.
