Product Description

Supply Ability & Additional Information

< >

Overview

Supply Ability & Additional Information

Productivity: 80, 000 Sets/Year

Supply Ability: 80, 000 Sets/Year

Payment Type: L/C

PRODUCT DESCRIPCTION

Product Name	Modern Escalator main engine motor components escalator driving machine
Deadweight	320kgs
Noise level	<57dB(A)
Torsional vibration	<0.8~1.2mm/s
Horizontal and vertical vibrations	<0.8~1.2mm/s
Rated output torque	886N.m~1463N.m
Arrangement	Only right side
Certificate	ISO9001 / CCC / CE
Features	Low-energy, Low noises, Non-pollution, Less maintenance
Payments	T/T, L/C

Don't hesitate to contact us if you have any questions.

PRODUCTS SHOW

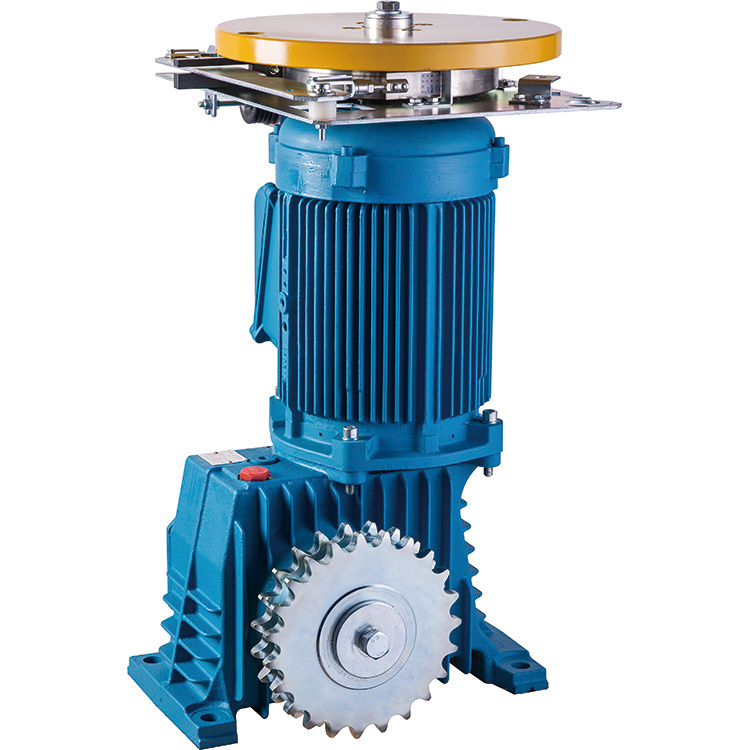

Modern Escalator Main Engine Motor Components Escalator Driving Machine

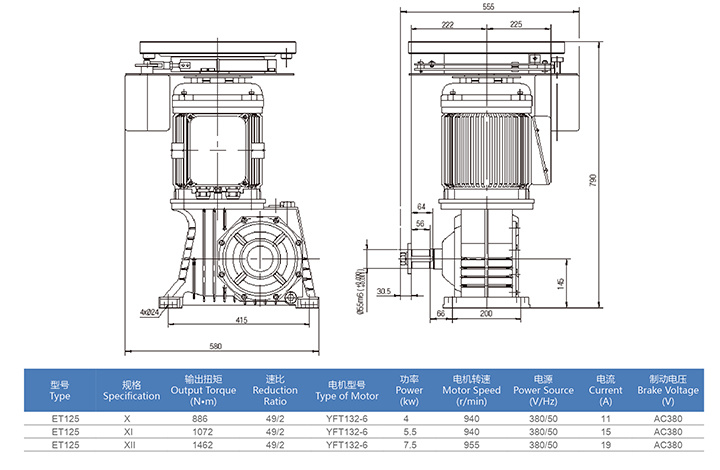

Overall dimensions and mounting dimensions

COMPANY OVERVIEW

With multi-industry and self-supporting import and export rights, China Shanghai Shanghai FUJI Elevator Co., Ltd. is one of the largest manufacturers & exporters for elevator key mechanical components in the world. we have 20 years' export experience and are ready to serve your market.Our global annual sales amount reached US$200 million in 2009. We provide worldwide customers with a full line of reliable products:

1. Elevator key components:such as Geared Traction Machine, Gearless Traction Machine, lift motors, Elevator Car, Door Operator, Landing Door, Overspeed Governor, Safety Gear, etc.
2. Complete Elevators, Escalators, moving walks:such as Passenger Elevators, Freight Elevators, Commercial elevators, Residential Elevator, MRL elevators, Service Elevator, Bed Elevator, Observation Elevator, Indoor or Outdoor Escalators, Passenger Conveyors etc.
3. Screw Air Compressors:such as Twin-screw compressor, stationery screw compressors, air-cooled Screw Compressor, water cooled Screw Compressor, oil-flooded compressor, variable frequency screw compressor, portable screw compressor etc.
4. Rotogravure Printing Machines:such as combined type rotogravure press, dry lamination machine, rotogravure printing & coating machine, rotogravure printing & slitting machine etc.

Product Categories : Elevators Geared Traction Machine
