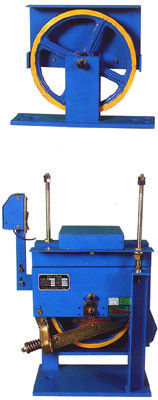

Bellow-Installed Elevator Speed Governor

Payment Type:

T/T,L/C

Min. Order:

1 Set/Sets

 Chat Now

< >

Overview

Product Attributes

Model No.: PB183

Brand: Fuji

Supply Ability & Additional Information

Packaging: non-wooden

Place of Origin: china

Certificate: CE / ISO9001 / ISO14001

Payment Type: T/T,L/C

Packaging & Delivery

Detailed Product Description

Name:	Bellow-Installed Speed Governor	Tension Force:	500N≤L<3900N
Number Of Drawing:	PB183	Rated Speed:	0.25-2.5m/s
Diameter Of Wire Rope:	φ8	Sheave Diameter:	φ240

Bellow-Installed Elevator Speed Governor ,φ240 Sheave PB183

Elevator Rope Governor
Elevator Speed Governor
elevator governor
lift overspeed governor
Elevator Speed Limiter
Sheave diameterφ300

Bellow-Installed Elevator Speed Governor , Lift Overspeed Governor , PB183

Name:	Bellow-Installed Speed Governor
Number Of Drawing:	PB183

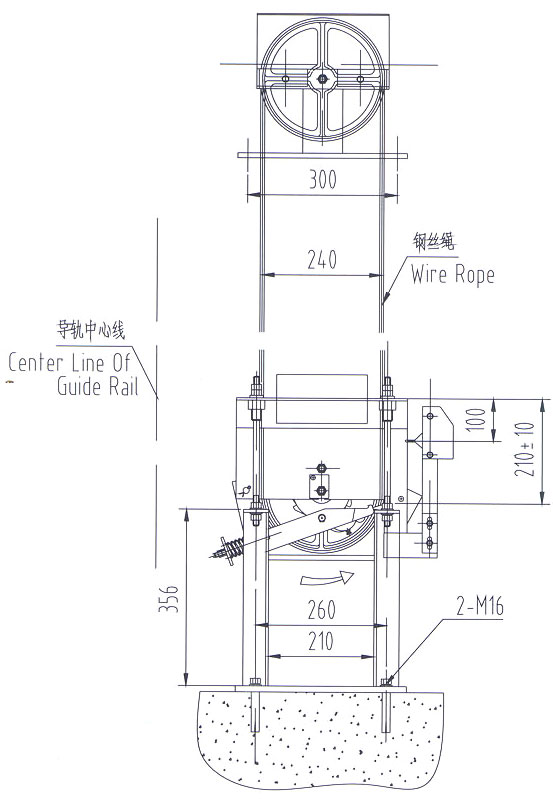

Technical parameters

1.Rated Speed:0.25-2.5m/s

2.Tension force 500N≤L<3900N

3.Diameter of wire rope φ8

4.Sheave diameterφ240

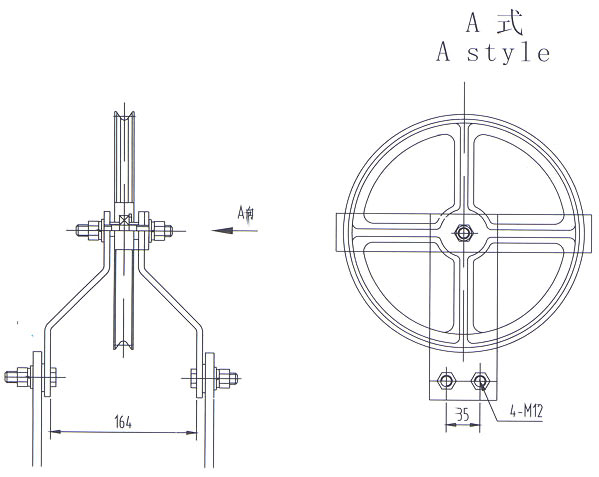

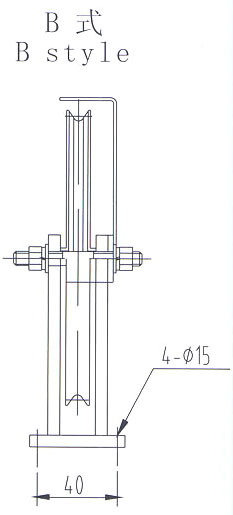

A style is installed onthe horisontal beam B is installed on the rail
