  • Gearless Traction Machine for Elevator Mini5C Series
Gearless Traction Machine for Elevator Mini5C Series

Gearless Traction Machine for Elevator Mini5C Series

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:
1 Set/Sets
Transportation:
Ocean
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.MINI 5C

BrandFuji

TypeDriving System

Drive ModeAC

Control TypeMicrocomputer Frequency Control

Use of OccasionsIndoor Type

Guide RailT Guide

Ratio2:1

Rated Speed0.63,1.0,1.6,1.75,2 M/s

Rated Load630-1150 Kg

Supply Ability & Additional Information

PackagingNon-wooden

Productivity80000/year

TransportationOcean

Place of OriginShanghai, China (Mainland)

CertificateCE / ISO9001 / ISO14001

HS Code84253190

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Non-wooden

Fuji Gearless Lift Traction Machines MINI 5C


Quick Details


Type: Elevators
Place of Origin: Shanghai, China (Mainland)
Brand Name: Fuji
Model Number: MINI 5C
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 2:1
Rated capacity: 630,800,1000,1150 kg
Rated elevator speed: 0.63,1,1.6,1.75,2.0 m/s
Max. lifting height: 80m
Max. shaft load: 3000/3500kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v
Number of motor poles: 32 poles
Traction sheave diameter: 400/450mm


Packaging & Delivery

Delivery Detail: 30 days after T/T in advance


Ø400/450 Permanent Magnet Synchronous Gearless Traction Machine, MINI 5C, elevator gearless Traction Machine

Product Description


This series of Gearless Machine adopts an outer rotor structure and a unique fixed center axis design, making the stress of the host machine more reasonable.

The excellent magnetic field design allows the host to run smoothly with low noise and low temperature rise.


Product Characteristics


Traction ratio: 2:1
Rated capacity: 630,800,1000,1150 kg
Rated elevator speed: 0.63,1,1.6,1.75,2 m/s
Max. lifting height: 80m
Max. shaft load: 3000/3500kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 32 poles
Traction sheave diameter: Ø 400/450mm

Name:MINI 5C (630~1150kg)

MINI5C

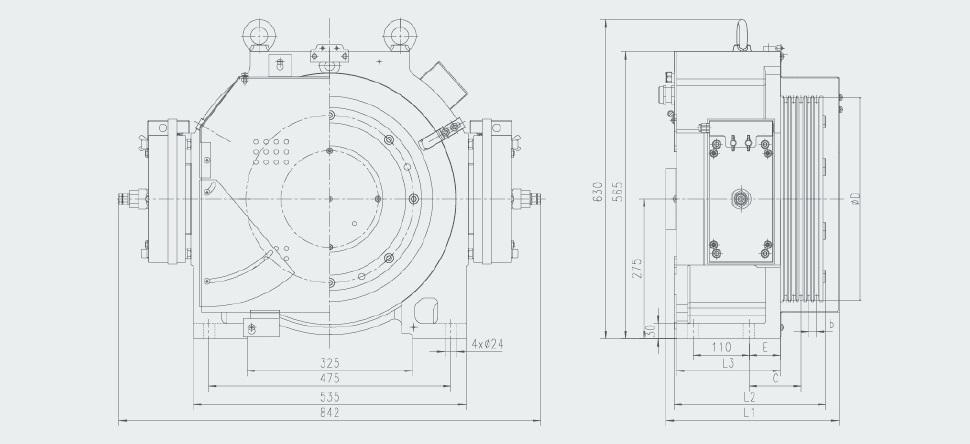

Overall & Installation Dimensions:

5c

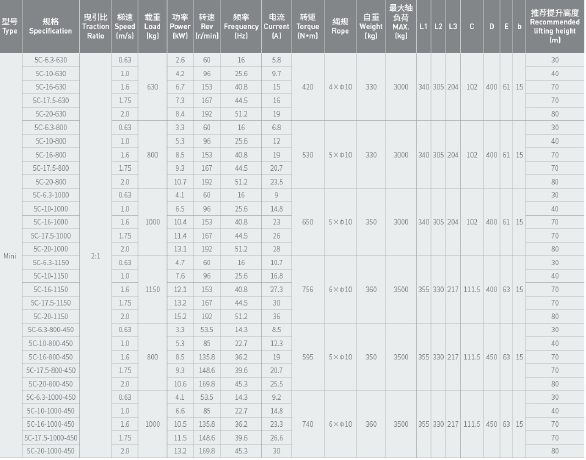

Specifications:

5c

Product Categories : Gearless Traction Machine
